Product Details:
Payment & Shipping Terms:
|
| Color: | Customized | Type: | Rotary Tattoo Machine |
|---|---|---|---|
| Motor: | High Quality Coreless Motor | Application: | Tattoo Workshops |
| Usage: | Body Tattoo | Feature: | Easy Operation |
| Connector: | RCA | Rotating Speed: | 12V - 11000R/M |
| High Light: | Rotary Tattoo Machine 12Volt,3.8mm Rotary Tattoo Machine,Coreless RCA Tattoo Machine |
||

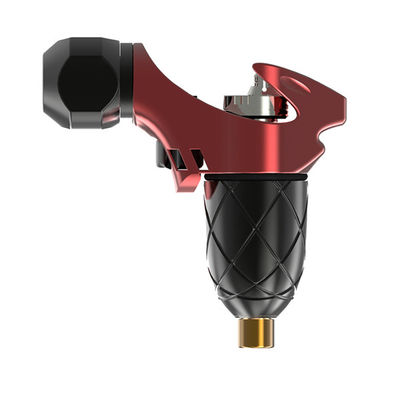

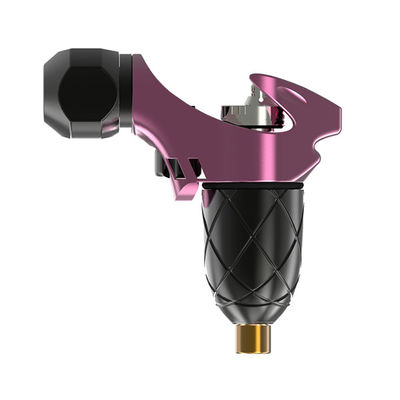

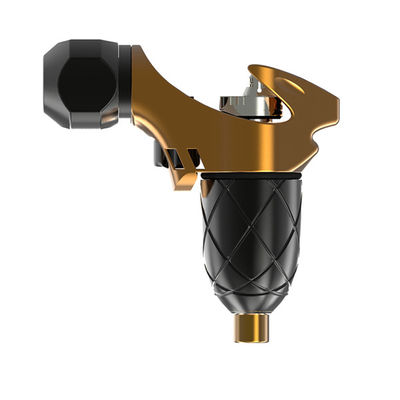

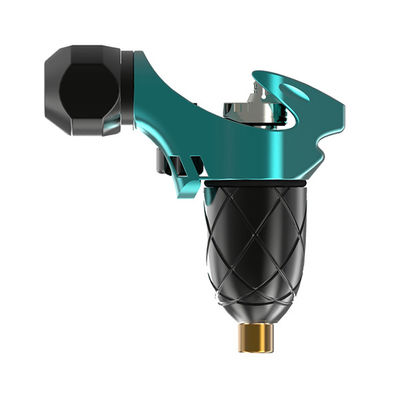

Professional Rotary Tattoo Machine Sroke 3.8mm Rotary Tattoo Pen Machine For Tattoo Artist
Main products :
1. Wireless Tattoo Machine
2. Wireless Permanent Makeup Pen
3. RCA & DC Tattoo Machine
4. Rotary Tattoo Machine
5. Tattoo Battery & Grip
Our company can provide internal structure and external design , combined with the motor size, needle size, and the strokes requirements, to provide customers with high-quality tattoo machines . Low vibration, strong strength, novel appearance and stable quality are our goals.
Product Description
| Material | Aluminum Alloy & Brass & Stainless Steel & Fine Steel & Delrin |
| Available Stroke | 3.5mm , 4.0mm |
| Dimension | 62.18mm * 67.47mm * 20.61mm * 23.1mm * 9.91mm |
| Design Weight | 145g |
| Output Voltage | 4 - 12V |
| Motor | Coreless motor |
| Working Voltage | 4 - 8V |
| Needle Length | Adujustable 0 - 4.1mm |
| Connector | RCA |
| Torque | 340 |
| Rotating Speed | 12V - 11000R/M |
Motor Dimensions
| Motor Code | Type | Diameter (mm) | Length (mm) | Voltage (v) | No-Load Speed (rpm) | No-Load Current (mA) | Weight (g) |
| EM2016 | DC Brush coreless | 26 | 10 | 12 | 9000 ± 10% | ≤40 | 22 |
| M1725 | DC Brush coreless | 17 | 25 | 12 | 12000±15% | ≤40 | 25 |
| M2025 | DC Brush coreless | 20 | 25 | 12 | 10000 ±10% | ≤40 | 35 |
| M2225 | DC Brush coreless | 22 | 25 | 12 | 9000 ± 10% | ≤25 | 45 |
| M2016 | DC Brush coreless | 20 | 16 | 12 | 10800 ±10% | ≤20 | 25 |
| M2607 | DC Brush coreless | 26 | 7 | 12 | 9500 ± 10% | ≤20 | 20 |
| M2610 | DC Brush coreless | 26 | 10 | 12 | 8800 ± 10% | ≤20 | 25 |
| M1526 | DC Brush | 15.3 | 26.3 | 12 | 13000 ±10% | ≤50 | 15 |
| M2412 | DC Brush | 24 | 12 | 12 | 10000 ±10% | ≤75 | 20 |
| M2430 | DC Brush | 24 | 30 | 12 | 9000 ± 10% | ≤60 | 50 |
Customized details
| 1. OEM/ODM tattoo machines are highly appreciated, customized are welcome . |
| 2. The length, diameter, color and structure of the tattoo machine all can be customized . |
| 3. Customer need to confirm which motor to use , as motors have lots of dimensions , and it will depends on the function too . |
| 4. Customer need to confirm the needles which to be normally used or matched , as needles have different sizes in the market . |
Outter size
Product characteristics
1:One-handed accusation.
2:Dynamic foot.
3:High speed.
4:Stable needle output.
5:Strong performance.
6:Seamless adjustment.
