Product Details:
Payment & Shipping Terms:
|
| Application: | Tattoo Workshops | Usage: | Body Tattoo |
|---|---|---|---|
| Functioin: | Body Art | Advantage: | Speed Adjustable |
| Color: | Customized | Feature: | Easy Operation |
| Battery Type: | Lithium Polymer | Material: | Aluminum |
| Stroke Options: | 0-4.5mm | Motor: | High Quality Coreless Motor |
| High Light: | Wireless Tattoo Machine Rotary,Wireless Tattoo Machine OEM,LCD rotary tattoo machine wireless |
||

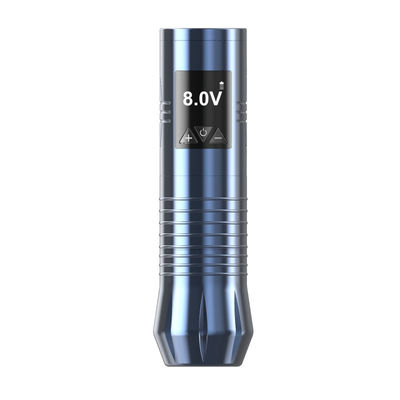

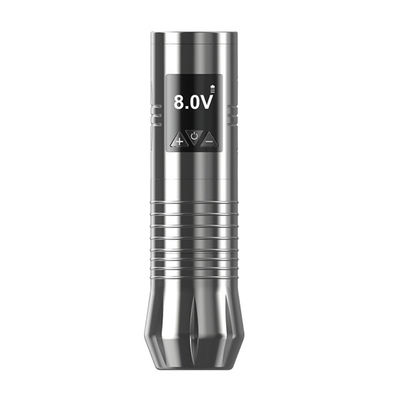

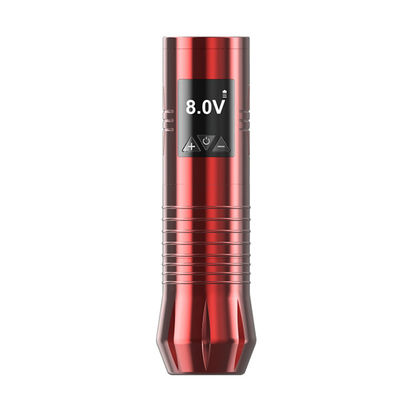

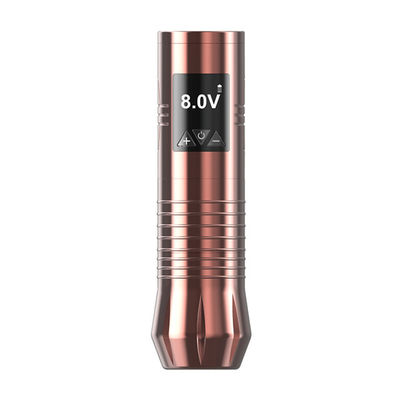

Grey Color Wireless Tattoo Machine Rotary Digital LCD Screen Wireless Tattoo Machine Pen Assorted Coreless Motor Gun
Wireless Tattoo Machine Rotary Digital LCD Wireless Tattoo Machine Pen Assorted Coreless Motor Gun
Main products :
1. Wireless Tattoo Machine
2. Wireless Permanent Makeup Pen
3. RCA & DC Tattoo Machine
4. Rotary Tattoo Machine
5. Tattoo Battery & Grip
Our company can provide internal structure and external design , combined with the motor size, needle size, and the strokes requirements, to provide customers with high-quality tattoo machines . Low vibration, strong strength, novel appearance and stable quality are our goals.
Product Description
| Material | Aluminum Alloy |
| Available Stroke Options | 0-4mm |
| Length | 130mm |
| Design Weight | 132g |
| Newly Designed Ergonomic Grip | 38.44mm |
| Rate Voltage | 10v |
| Output Power | 5w |
| Support Operation Voltage | 5.0v - 12.0v |
| Default Start Voltage | 8.0v |
| Battery Type | Lithium Polymer |
| Changing Power | Full charge in 2 hours when used with the USB-C charging cable |
| Power Capacity | 1600mAh |
| Battery life | Up to 10 hours of battery /Dependign on powder level |
| Charging port | For best results , use USB-C charging cord included |
| Power Supply | 5-12 Volts ; 66-199 Hertz |
| Motor | Coreless motor |
Available Batteries
| 1 | Product model | PL751460 | Size | 7.5*14*60mm |
| Capacity | 600mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About11g | |
| 2 | Product model | PL801660 | Size | 8.0*16*60mm |
| Capacity | 800mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About13g | |
| 3 | Product model | PL802040-2P | Size | 16*20*60mm |
| Capacity | 1200mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About24g | |
| 4 | Product model | PL102540-2P | Size | 20*25*40mm |
| Capacity | 1600mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About28g | |
| 5 | Product model | PL102050-2P | Size | 20.0*20*50mm |
| Capacity | 2000mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About33g | |
| 6 | Product model | PL901855-2P | Size | 18*18.5*55mm |
| Capacity | 2400mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About40g | |
| 7 | Product model | No. 5 / AA | Size | 14.5*50mm |
| Capacity | 2600mWh | Battery voltage | 1.5V constant voltage discharge | |
| Service life | More than 1200 cycles | Service temperature | Minus 20 ℃ - 60 ℃ | |
| Texture of material | Li ion (lithium battery) | Charging voltage | DC 5V | |
| Charging interface | Type-C interface | Weight | About 18g | |
| 8 | Product model | No. 7 / AA | Size | 10.5*44.5mm |
| Capacity | 750mwh | Battery voltage | 1.5V constant voltage discharge | |
| Service life | More than 1200 cycles | Service temperature | Minus 20 ℃ - 60 ℃ | |
| Texture of material | Li ion (lithium battery) | Charging voltage | DC 5V | |
| Charging interface | Type-C interface | Weight | About 14g |
Motor Dimensions
| Motor Code | Type | Diameter (mm) | Length (mm) | Voltage (v) | No-Load Speed (rpm) | No-Load Current (mA) | Weight (g) |
| EM2016 | DC Brush coreless | 26 | 10 | 12 | 9000 ± 10% | ≤40 | 22 |
| M1725 | DC Brush coreless | 17 | 25 | 12 | 12000±15% | ≤40 | 25 |
| M2025 | DC Brush coreless | 20 | 25 | 12 | 10000 ±10% | ≤40 | 35 |
| M2225 | DC Brush coreless | 22 | 25 | 12 | 9000 ± 10% | ≤25 | 45 |
| M2016 | DC Brush coreless | 20 | 16 | 12 | 10800 ±10% | ≤20 | 25 |
| M2607 | DC Brush coreless | 26 | 7 | 12 | 9500 ± 10% | ≤20 | 20 |
| M2610 | DC Brush coreless | 26 | 10 | 12 | 8800 ± 10% | ≤20 | 25 |
| M1526 | DC Brush | 15.3 | 26.3 | 12 | 13000 ±10% | ≤50 | 15 |
| M2412 | DC Brush | 24 | 12 | 12 | 10000 ±10% | ≤75 | 20 |
| M2430 | DC Brush | 24 | 30 | 12 | 9000 ± 10% | ≤60 | 50 |
Customized details
| 1. OEM/ODM tattoo machines are highly appreciated, customized are welcome . |
| 2. The length, diameter, color and structure of the tattoo machine all can be customized . |
| 3. Customer need to confirm which motor to use , as motors have lots of dimensions , and it will depends on the function too . |
| 4. Customer need to confirm the needles which to be normally used or matched , as needles have different sizes in the market . |
Tattoo Pen machine appearance size
Available internal structure
Product characteristics
1: intelligent multi-level adjustment
2: Display data
3: Button to adjust the speed
4: Improve work efficiency
