Product Details:
Payment & Shipping Terms:
|
| Advantage: | Speed Adjustable | Functioin: | Body Art |
|---|---|---|---|
| Motor: | High Quality Coreless Motor | Application: | Tattoo Workshops |
| Feature: | Easy Operation | Type: | Rotary Tattoo Machine |
| Color: | Red & Silver & Rose Red & Gold & Black | Usage: | Body Tattoo |
| High Light: | Small RCA Tattoo Machine,ODM RCA Tattoo Machine,Portable Tattoo Machine Pen Type |
||

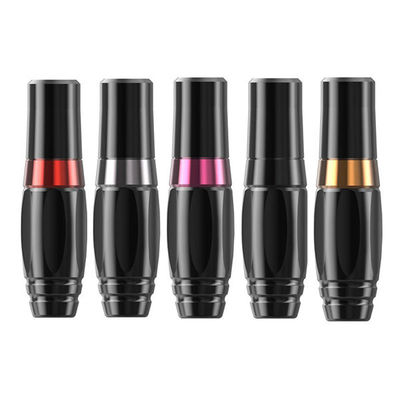

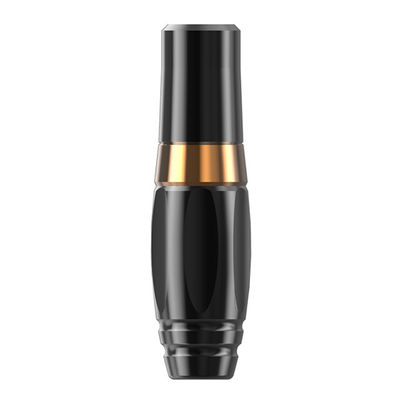

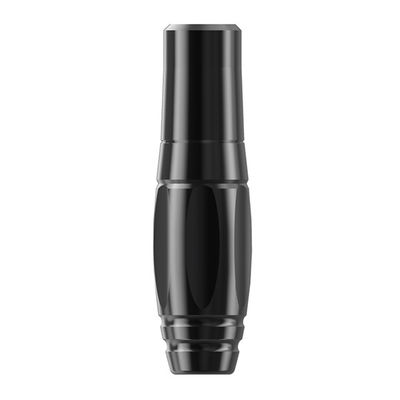

RCA Connector Aluminum Tattoo Machine Coreless Motor For Tattoo Artists
Main products :
1. Wireless Tattoo Machine
2. Wireless Permanent Makeup Pen
3. RCA & DC Tattoo Machine
4. Rotary Tattoo Machine
5. Tattoo Battery & Grip
Our company can provide internal structure and external design , combined with the motor size, needle size, and the strokes requirements, to provide customers with high-quality tattoo machines . Low vibration, strong strength, novel appearance and stable quality are our goals.
Product Description
| Material | Aluminum Alloy |
| Available Stroke | 3.2mm , 3.8mm |
| Length | 113.37mm |
| Design Weight | 102g |
| Newly Designed Ergonomic Grip | 31.53mm |
| Connector | RCA |
| Needle protrusion | 0 - 4.5mm |
| Start Voltage | 5V |
| Nominal Voltage | 10V |
| Nominal Torque | 5 mNm |
| Work Voltage | 7V - 11V |
| Motor Speed | 12V - 11000 R/M |
| Output Power | 5W |
| Motor | Coreless motor |
Motor Dimensions
| Motor Code | Type | Diameter (mm) | Length (mm) | Voltage (v) | No-Load Speed (rpm) | No-Load Current (mA) | Weight (g) |
| EM2016 | DC Brush coreless | 26 | 10 | 12 | 9000 ± 10% | ≤40 | 22 |
| M1725 | DC Brush coreless | 17 | 25 | 12 | 12000±15% | ≤40 | 25 |
| M2025 | DC Brush coreless | 20 | 25 | 12 | 10000 ±10% | ≤40 | 35 |
| M2225 | DC Brush coreless | 22 | 25 | 12 | 9000 ± 10% | ≤25 | 45 |
| M2016 | DC Brush coreless | 20 | 16 | 12 | 10800 ±10% | ≤20 | 25 |
| M2607 | DC Brush coreless | 26 | 7 | 12 | 9500 ± 10% | ≤20 | 20 |
| M2610 | DC Brush coreless | 26 | 10 | 12 | 8800 ± 10% | ≤20 | 25 |
| M1526 | DC Brush | 15.3 | 26.3 | 12 | 13000 ±10% | ≤50 | 15 |
| M2412 | DC Brush | 24 | 12 | 12 | 10000 ±10% | ≤75 | 20 |
| M2430 | DC Brush | 24 | 30 | 12 | 9000 ± 10% | ≤60 | 50 |
Customized details
| 1. OEM/ODM tattoo machines are highly appreciated, customized are welcome . |
| 2. The length, diameter, color and structure of the tattoo machine all can be customized . |
| 3. Customer need to confirm which motor to use , as motors have lots of dimensions , and it will depends on the function too . |
| 4. Customer need to confirm the needles which to be normally used or matched , as needles have different sizes in the market . |
Tattoo Pen machine appearance size

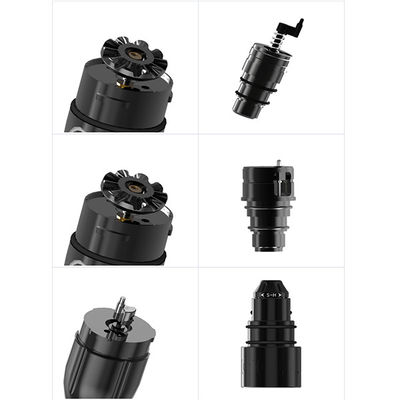

Available Internal Structure
Product characteristics
1: Low rate of skin damage
2: uniform color does not fade
3: The color sense is better and clearer
