Product Details:
Payment & Shipping Terms:
|
| Color: | Customized | Usage: | Body Tattoo |
|---|---|---|---|
| Feature: | Easy Operation | Material: | Aluminum |
| Battery Type: | Lithium Polymer | Stroke Options: | 0-4.5mm |
| Motor: | High Quality Coreless Motor | Length: | 120.63mm |
| Weight: | 120g |

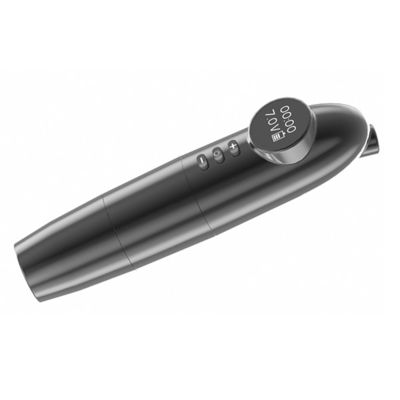

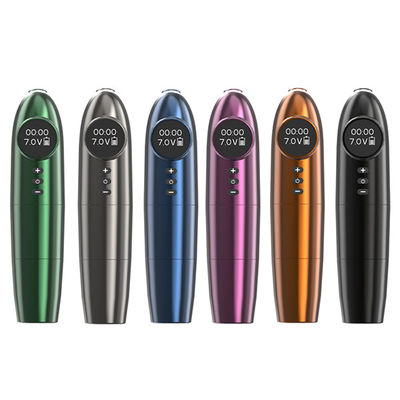

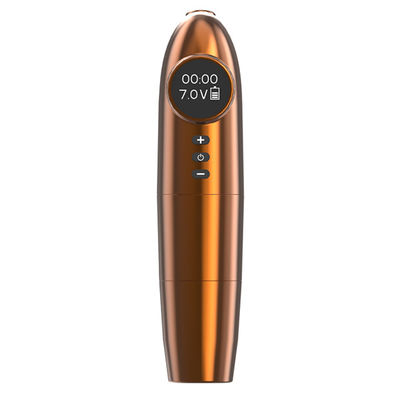

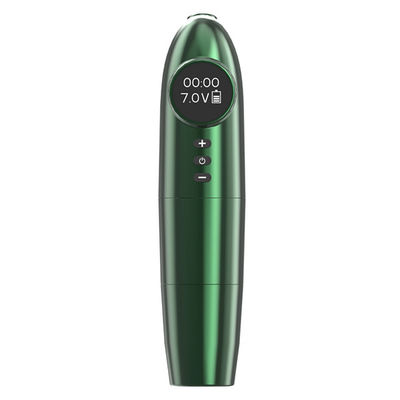

LCD Display Rotary Tattoo Machine Wireless Professional Tattoo Gun Pen Battery Machine
Main products :
1.Wireless Tattoo Machine
2.Wireless Permanent Makeup Pen
3.RCA & DC Tattoo Machine
4.Rotary Tattoo Machine
5.Tattoo Battery & Grip
Our company can provide internal structure and external design , combined with the motor size, needle size, and the strokes requirements, to provide customers with high-quality tattoo machines . Low vibration, strong strength, novel appearance and stable quality are our goals.
Product Description
| Material | Aluminum Alloy |
| Available Stroke Options | 0-4mm |
| Length | 120.63mm |
| Design Weight | 120g |
| Newly Designed Ergonomic Grip | 28.79mm |
| Rate Voltage | 10v |
| Output Power | 5w |
| Support Operation Voltage | 5.0v - 12.0v |
| Default Start Voltage | 8.0v |
| Battery Type | Lithium Polymer |
| Changing Power | Full charge in 2 hours when used with the USB-C charging cable |
| Power Capacity | 1600mAh |
| Battery life | Up to 10 hours of battery /Dependign on powder level |
| Charging port | For best results , use USB-C charging cord included |
| Power Supply | 5-12 Volts ; 66-199 Hertz |
| Motor | Coreless motor |
Motor Dimensions
| Motor Code | Type | Diameter (mm) | Length (mm) | Voltage (v) | No-Load Speed (rpm) | No-Load Current (mA) | Weight (g) |
| EM2016 | DC Brush coreless | 26 | 10 | 12 | 9000 ± 10% | ≤40 | 22 |
| M1725 | DC Brush coreless | 17 | 25 | 12 | 12000±15% | ≤40 | 25 |
| M2025 | DC Brush coreless | 20 | 25 | 12 | 10000 ±10% | ≤40 | 35 |
| M2225 | DC Brush coreless | 22 | 25 | 12 | 9000 ± 10% | ≤25 | 45 |
| M2016 | DC Brush coreless | 20 | 16 | 12 | 10800 ±10% | ≤20 | 25 |
| M2607 | DC Brush coreless | 26 | 7 | 12 | 9500 ± 10% | ≤20 | 20 |
| M2610 | DC Brush coreless | 26 | 10 | 12 | 8800 ± 10% | ≤20 | 25 |
| M1526 | DC Brush | 15.3 | 26.3 | 12 | 13000 ±10% | ≤50 | 15 |
| M2412 | DC Brush | 24 | 12 | 12 | 10000 ±10% | ≤75 | 20 |
| M2430 | DC Brush | 24 | 30 | 12 | 9000 ± 10% | ≤60 | 50 |
Available Batteries
| 1 | Product model | PL751460 | Size | 7.5*14*60mm |
| Capacity | 600mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About11g | |
| 2 | Product model | PL801660 | Size | 8.0*16*60mm |
| Capacity | 800mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About13g | |
| 3 | Product model | PL802040-2P | Size | 16*20*60mm |
| Capacity | 1200mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About24g | |
| 4 | Product model | PL102540-2P | Size | 20*25*40mm |
| Capacity | 1600mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About28g | |
| 5 | Product model | PL102050-2P | Size | 20.0*20*50mm |
| Capacity | 2000mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About33g | |
| 6 | Product model | PL901855-2P | Size | 18*18.5*55mm |
| Capacity | 2400mAH | Battery voltage | 3.0-4.2V | |
| Service life | More than 500 cycles | Service temperature | minus10℃-40℃ | |
| Texture of material | Polymer lithium battery | Charging voltage | DC4.2-5V | |
| Charging interface | / | Weight | About40g | |
| 7 | Product model | No. 5 / AA | Size | 14.5*50mm |
| Capacity | 2600mWh | Battery voltage | 1.5V constant voltage discharge | |
| Service life | More than 1200 cycles | Service temperature | Minus 20 ℃ - 60 ℃ | |
| Texture of material | Li ion (lithium battery) | Charging voltage | DC 5V | |
| Charging interface | Type-C interface | Weight | About 18g | |
| 8 | Product model | No. 7 / AA | Size | 10.5*44.5mm |
| Capacity | 750mwh | Battery voltage | 1.5V constant voltage discharge | |
| Service life | More than 1200 cycles | Service temperature | Minus 20 ℃ - 60 ℃ | |
| Texture of material | Li ion (lithium battery) | Charging voltage | DC 5V | |
| Charging interface | Type-C interface | Weight | About 14g |
Customized details
| 1. OEM/ODM tattoo machines are highly appreciated, customized are welcome . |
| 2. The length, diameter, color and structure of the tattoo machine all can be customized . |
| 3. Customer need to confirm which motor to use , as motors have lots of dimensions , and it will depends on the function too . |
| 4. Customer need to confirm the needles which to be normally used or matched , as needles have different sizes in the market . |
Available internal structure
Tattoo Pen machine appearance size
Product characteristics
1: intelligent multi-level adjustment
2: Display data
3: Button to adjust the speed
4: Improve work efficien
